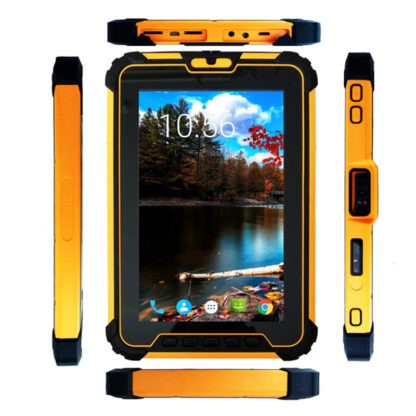

Model series: ROCKY II – 8.0 inch IP67 Ruggedized Tablets with 1D/2D Barcode Scanner, Infrared, NFC/RFID and Fingerprint scanner

Big Screen:

8 inch LCD screen, 1280*800 / 1920*1200(optional) IPS capacitive touch screen, sunlight readable for outdoor use.

Advanced system:

Android 7.1 operating system; CPU MSM8953, 8 core, 2GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G

Advanced system:

drop resistance from 1.2m

Multi functions data acquisition configuration:

1D/2D bar code scanning, LF/HF/UHF RFID reader, fingerprint identification

Multi communication modes:

3G/4G, wireless communication 4G, WIFI, Bluetooth

Super long life battery:

10,000mA, more than 500 hours of continuous standby

Basic specifications

• Model ROCKY II
• Operating System Android OS
• CPU MSM8953, 8 core CPU, 2GHz
• GPU Qualcomm® Adreno™ 506 GPU,650Mhz
• RAM RAM: 4GB, FLASH: 64GB
• Extended Storage Micro SD, Maximum 128G
• USB port 5 pin MicroUSB; Support to connect U-disk/Mouse/Keyboard/OTG line
• OTG Through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend RS232 serial port/485 serial port/RJ45 Serial port
• External Port Charge port, headphone port
• Industrial Protection Grade IP67
• Drop Grade Drop resistance from 1.2m
• Bluetooth Support 4.0
• GPS GPS+BDS+A-GPS+GLONASS, Qualcomm GPS 3m
• WIFI Support IEEE 802.11a/b/g/n/ac (2.4G and 5G bands)
• 2G/3G/4G LTE GSM 850/900/1800/1900 B5/B8/B3/B2, WCDMA 2100/1900/1700 B1/B2/B4, TD-SCDMA B34/B39, FDD-LTE: B1/B3/B5/B7/B8, 2100/1800/850/2600/900, TDD-LTE : B38/B39/B41/B40/, Band38:2570 MHz – 2620 MHz, Band39: 1880 MHz – 1920 MHz, B41:2555-2655MHz, B40:2300-2400MHz
• Far Infrared Meter Reading: Working frequency 37.9K

Physical Parameters

• Display Screen 8 inch LCD screen,1280*800 (Optional 1920*1200) IPS screen, capacitive touch screen
• Keyboard Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset
• Camera 5 million pixels front camera, 13 million pixels rear camera with automatic focus and lighting function
• Headset 3.5mm audio Interface, has MIC and Single loudspeaker
• LED indicator light Support (ordinary flicker, Call fast flicker, missed calls, charge indicator)
• Flashlight Function Support, can be used for emergency lighting
• Google play store Support
• Gravity sensor Support
• Compas Support
• Acceleration sensors Support
• Magnetometer Support
• Light and distance sensor Support
• Vibrating motor Support
• FM Support
• Rechargeable Lithium Battery 3.8V, 10000mAh
• Standby About 500 hours
• Working time About 8 hours
• Dimension 232*158*22 mm
• Weight 810g

Environmental Characteristics

• Working Temperature -10℃ ~ +50℃
• Storage Temperature -40℃ ~ +60℃
• Humidity 5%-95% relative humidity; no condensation

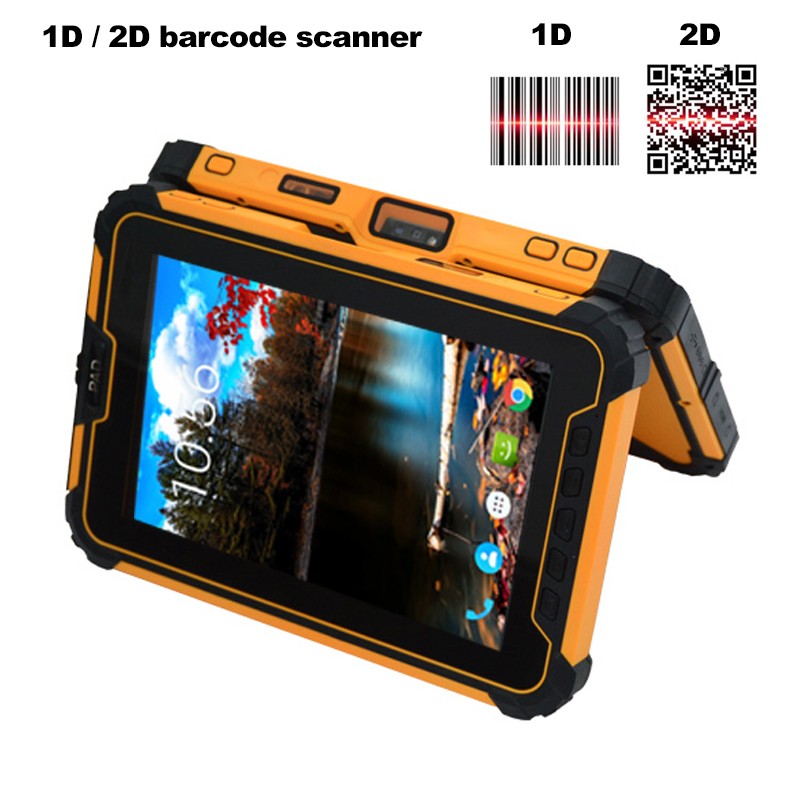

Barcode Scanning

1D Laser Scanner Index(Internal):

• Honeywell N4313 or Zebra EM1350
• Scanning speed: 104 times/second+12 times/second (two way scanning)
• Scanning distance: 2.5cm-114.3cm
• Scanning angle: 47±3°(default) /35±3°(reduced code)

2D Barcode Scanner Index(Internal):

• Newlands EM3096
• Honeywell N3680
• Motorola SE4750
• Identification ability: 1D, 2D, OCR
• Scanning angle: rotate 360°, incline±50°, deflection ±50°
• Field of View: Horizontal 36°, vertical 23°
• Depth of field: 4cm-23.5cm
• Environmental luminance: 0~100,000 LUX

Optional Function

• Fingerprint Identification Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
• Type: AuthenTec TCSIST semiconductor sensor
• Acquisition window size: 24.5*19mm
• Effective image size: 15.5*18.5mm
• Sensor type: capacitive
• Image size: 256*360 pixels
• Resolution: 500 DPI
• Matching mode: contrast mode(1:1); search mode(1:N)

RFID

• HF RFID(Internal): Support NFC/NXP, 13.56MHZ ISO14443A,B and ISO15693 protocol, reading distance 0-3cm, Tag support type:SR176,SRIX4K(TYPE-B),I-Code2,TI RFID Tag-it HF-I,EM4034,Mifare Classic ETC

LF RFID:

• 134.2KHZ LF RFID, support ISO11784/5 protocol, support to read EM, TEMID, TK cards and compatible cards IC card(FDX/HDX) 125KHZ LF RFID, support to read ID card

UHF RFID

• Internal Ray links RLM060 or ThingMagic M6E-NANO, EPC C1 GEN2/ISO 18000-6C,output power 10dBm-30dBm
• Reading distance: 1m
• Ceramic antenna: 0.3db(25*25*4mm)
